When a geothermal heat pump system is first installed, the ground loop is filled with a heat-transfer fluid, typically water mixed with antifreeze. That fluid must be free of air pockets, debris, and contamination before the system is commissioned. Trapped air can cause pump cavitation, reduce heat-transfer efficiency, and shorten equipment life. This is exactly where a geothermal purge cart becomes indispensable.
In this guide, we break down exactly what a geothermal purge cart does, walk through the geothermal loop flushing process step by step, and explain why the right equipment — like the Power-Flow Purge Cart from B&D Mfg., makes all the difference on a job site.
Quick Answer: A geothermal purge cart is a portable, high-flow pumping unit used to flush, fill, and purge air from a geothermal ground loop before system startup. It ensures the loop is fully charged with clean fluid and free of air, enabling efficient heat exchange from day one.
Understanding the Geothermal Ground Loop
Before diving into what a purge cart does, it helps to understand what it’s purging. A geothermal system relies on a closed-loop piping network buried in the ground — either horizontally, vertically, or submerged in a pond. This loop circulates fluid between the earth and the heat pump, transferring thermal energy in both heating and cooling modes.
Key geothermal components that make up a complete system include:
Ground loop piping (typically HDPE pipe)
Flow center (circulating pump assembly)
Geothermal heat pump unit
Header manifolds and flushing valves
Purge/flush cart for installation and servicing
B&D Mfg. supplies all of these components. Explore the full range of geothermal components at bdmfginc.com to see flow centers, flushing valves, HDPE fittings, and more.
What Is a Geothermal Purge Cart?
A geothermal purge cart — sometimes called a flush cart or purge/flush cart — is a portable, wheeled unit housing a high-capacity pump, hose connections, and flow controls. Its job is to circulate fluid through the ground loop at high velocity to accomplish three critical tasks:
1. Flush Out Debris and Contaminants
During pipe installation and fusion, small particles of HDPE shavings, dirt, and installation debris can enter the loop. High-velocity flushing pushes these particles out before they can damage pump internals or reduce flow efficiency.
2. Purge Air from the Loop
Air trapped in the loop creates dead spots where fluid cannot flow, introduces oxygen that accelerates corrosion, and causes the circulating pump to cavitate. Geothermal loop flushing at high flow rates forces air pockets to the surface and out of the system.
3. Charge and Fill the Loop
Once purged of air and debris, the cart is used to fill the loop with the correct antifreeze-to-water mixture and bring it up to the right operating pressure. A fully charged loop means the geothermal system is ready for startup.
How Geothermal Loop Flushing Works: Step by Step
Proper geothermal loop flushing follows a methodical sequence. Here is a general overview of how the process is carried out using a purge cart:
Step 1 — Connect the Purge Cart to the Loop
The purge cart connects to the ground loop via hose connections at the supply and return ports. B&D Mfg.’s Power-Flow Purge Cart uses 1-1/4” Camlock hose fittings for quick, secure connections with no leakage.
Step 2 — Fill With Water
Plain water is introduced into the loop first. The high-flow pump — rated at 90 GPM at 62 ft. of head on the B&D model — circulates water at velocities well above what is needed to lift and carry debris particles out of the pipe.
Step 3 — Flush Until Clean
Flushing continues until the water exiting the loop is clear and free of visible particles. Depending on loop length and burial conditions, this may take 15–45 minutes or longer.
Step 4 — Introduce Antifreeze Mix
After flushing, the antifreeze solution (typically propylene glycol or methanol at the correct concentration for local climate) is introduced to the loop. The purge cart circulates and mixes the fluid evenly throughout the entire loop.
Step 5 — Purge Remaining Air
With the antifreeze charged, the cart continues to run at high velocity. Any remaining air bubbles migrate toward the high points and are vented out through purge valves or at the cart itself.
Step 6 — Verify and Commission
Once fluid flows bubble-free and the system holds pressure, the flow center takes over continuous circulation. The purge cart is disconnected, flushing valves are closed, and the heat pump is ready to commission.
Pro Tip: Always flush each loop circuit individually before flushing the header assembly. This ensures
every foot of pipe is purged, not just the path of least resistance through the manifold.
Ready to equip your next geothermal installation?
The B&D Mfg. Power-Flow Purge Cart: Built for the Job
B & D Mfg., Inc. manufactures the Power-Flow Purge Cart specifically for geothermal loop flushing applications. It is engineered to deliver the high GPM flow rates required to truly purge a ground loop — not just trickle water through it.
Key Specifications
Model: 304SS-2
Weight: 196 lbs. (fully rugged, built for job site use)
Pump Capacity: 90 GPM @ 62 ft. head
Hose: (2) 1-1/4” × 10 ft. hoses with Camlock fittings
Construction: 304 Stainless Steel frame for corrosion resistance
Accessories: 1” Swivel × 1” Plug and 1-1/4” Socket × 1” Plug adapter included
The 304 stainless steel construction protects against the chemical attack of glycol solutions and the moisture-heavy environment of geothermal job sites. The heavy-duty cart design makes it easy to move from zone to zone or jobsite to jobsite.
Download the official Purge Cart Installation Guide (PDF) or the Purge/Flush Cart Submittal Sheet directly from the B&D Mfg. website.

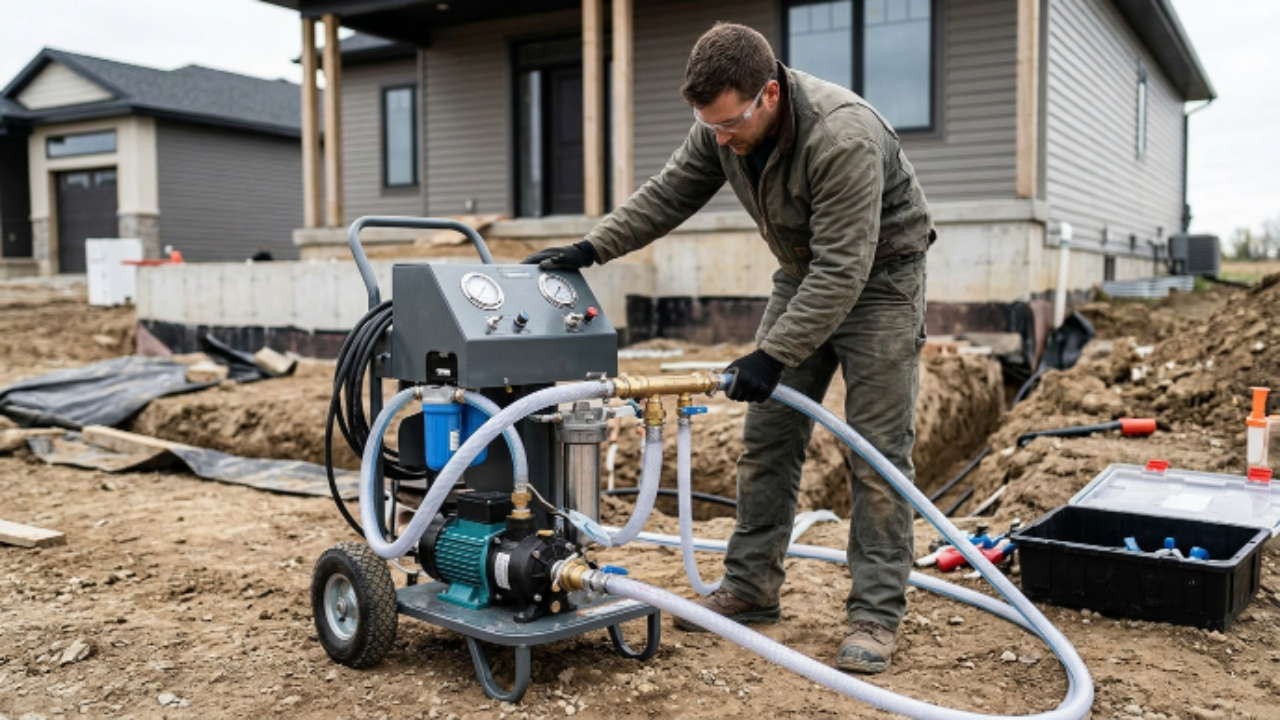

Why a Proper Purge Matters for Long-Term System Performance
Skipping or rushing geothermal loop flushing is one of the most common — and costly — installation mistakes. Here is what can go wrong when a loop is not properly purged:
Pump cavitation and premature failure due to air in the loop
Reduced heat-transfer efficiency, raising operating costs
Hot and cold spots in multi-zone systems from uneven fluid distribution
Increased corrosion risk from oxygen trapped in the loop water
Difficult diagnostic callbacks that are expensive to resolve after commissioning
A quality purge cart pays for itself many times over in avoided callbacks and system longevity. When the loop is clean, charged, and air-free from day one, the heat pump operates at peak efficiency throughout its service life.
Pair your purge cart with the right flushing valves and flow center from B&D Mfg. for a complete installation solution.
Complete Your Geothermal Installation with B&D Mfg. Components
The purge cart is one piece of a complete geothermal installation toolkit. B & D Mfg., Inc. manufactures and custom builds non-pressurized geothermal flow centers, air handlers, and buffer tanks for both residential and commercial applications. Key product lines include:
Flow Centers — GT, QT, XT, EA, KFC (3-Pump), Multizone, Smart Pump VFD, and Pressurized models
Flushing Valves — Brass threaded, brass x fusion, flanged, and HDPE poly valve options
HDPE Fittings — Compression fittings, butt fusion, sidewall saddles, and transitions
Grundfos Pumps — 115V and 230V models with full accessories
Buffer Tanks & Air Handlers — HSS series for hydronic systems
Pipe — Straight lengths and coils in standard geothermal sizes
Browse the complete B&D Mfg. geothermal product catalog or request a distributor price sheet at bdmfginc.com.
Questions about geothermal components?
Call B&D Mfg. at 866-646-6724
Frequently Asked Questions About Geothermal Purge Carts
Q: How long does geothermal loop flushing typically take?
The time varies based on loop length and configuration. A standard residential vertical or horizontal loop typically takes 30–90 minutes to flush and purge completely. Larger commercial installations with multiple loop fields may take several hours. The key is maintaining sufficient velocity — generally 2–3 ft/second in the pipe to lift and carry out debris and air.
Q: Can I use the purge cart to add antifreeze to an existing geothermal system?
Yes. A purge cart is useful during system servicing as well as initial installation. It can be used to flush out old fluid, introduce fresh antifreeze mix, and re-purge air after any loop maintenance or repair.
Q: What is the difference between a purge cart and a flow center?
A flow center is the permanent circulating pump assembly that runs continuously during system operation. A purge cart is a portable, temporary tool used only during installation and servicing to flush the loop at much higher flow rates than a standard flow center can provide. After purging, the flow center takes over for day-to-day operation.
Q: Do I need a purge cart for every geothermal installation?
Yes — or access to one. Proper geothermal loop flushing is considered a best practice by every major geothermal industry organization, including IGSHPA (International Ground Source Heat Pump Association). Attempting to purge a loop with a standard circulating pump typically does not provide sufficient flow velocity to remove all air and debris.
Q: Where can I buy the B&D Mfg. Power-Flow Purge Cart?
The B&D Mfg. Power-Flow Purge Cart is available through authorized distributors. If you are interested in becoming a distributor, contact the B&D Mfg. sales team at 866-646-6724 or visit bdmfginc.com for current inventory and pricing.
Q: What antifreeze should I use in a geothermal loop?
The most common options are propylene glycol (environmentally friendly, food-grade safe) and methanol. The correct concentration depends on the lowest expected ground temperature in your climate zone. Always refer to the heat pump manufacturer’s guidelines and local regulations. B&D Mfg. can advise on compatible fluids for use with their equipment.
Conclusion
A geothermal purge cart is not optional equipment, it is a fundamental tool for any professional geothermal installer. Proper geothermal loop flushing removes debris, eliminates trapped air, and ensures the heat-transfer fluid is evenly distributed before the system goes live. Done right, it sets the stage for decades of reliable, efficient operation.
B & D Mfg., Inc. has built its reputation on engineering geothermal components that work in the real world. The Power-Flow Purge Cart delivers the flow rates, durability, and ease of use that installers need to get the job done right the first time.
Explore the full range of geothermal installation equipment at bdmfginc.com or call the team directly at 866-646-6724 for technical questions and distributor information.
